Hand Hold Optical Test Instruments / Optical Fusion Splicer OFS-80A

Model Number : OFS-80A

Place of Origin : Shenzhen, China

MOQ : 1pcs

Payment Terms : T/T, L/C

Delivery Time : 10-15 working days

Packaging Details : Standard Carton

Contact Now

Hand-Hold Optical Test Instruments Optical Fusion Splicer OFS-80A

● PAS Picture digital treatment system
● Files Digital Management System
● Local adjustment, calibration, upgrading, maintain available Digital module
● Friendly and smart menu design
● Multiple Alignment mode: core alignment, cladding alignment, manually alignment
● 9 seconds splice, and 30 seconds heat shrink
● High performance 5.7” color LCD display
● Fiber Slant compensation, Discharge pressure compensation, Discharge temperature compensation

Specifications:

Splice Fiber mode	SM, MM, DS( Dispersion shifted), NZDS (None Zero dispersion shifted,G.655)
Splicer mode	Single fiber splicer
Cladding Outer Diameter	80 -150µm
Covered Fiber Diameter	100 -1000µm
Fiber Cut Length	8-16mm, Covered Fiber Diameter 250µm,16(standard) or 8-16mm (Optional), Covered Fiber Diameter 250µm-1000µm
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Splice time	9 seconds(standard SM)
Echo Loss	> 60dB
Splice Program	53 Group Default, 40 Group user configuration
Estimate Loss	Available
Splice Loss Storage	4000 Latest splice result
Screen Display	Zoom 300 times when X Axis and Y Axis independent display, Or Zoom 150 times when X Axis and Y Axis simultaneously display
Display	Inner temperature, Outer temperature, Local atmospheric pressure, heater temperature, battery voltage
Working environment	0 to 5000m(Altitude) 0 to 95%(Humidity) -10～50℃(Temperature)
Tension test	2N
Electrode life	2500 times
Heat mode	9 Group Default, 24 Group user configuration
Heat time	30 seconds
Heat shrink tube	60mm, 40mm and others
Battery splice/Heat times	150 times(splice/Heat),embedded lithium battery
Power supply	AC: 100-240V, DC:11-14V, lithium battery (8000mAH)
Interface	USB,VGA
Windbreak performance	15m/s strong wind
Size	150mm(length) x150mm (width) x150mm (height)
Weight	2.7 Kg (without battery), 3.3 Kg (with batter)

Hand Hold Optical Test Instruments / Optical Fusion Splicer OFS-80A

Product Tags:

optical power meter

fiber optic light source

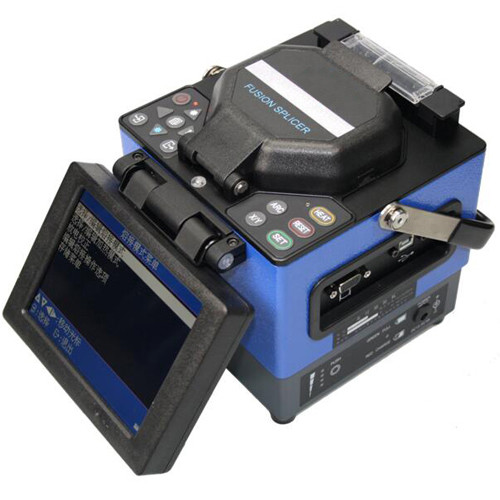

Hand Hold Optical Test Instruments / Optical Fusion Splicer OFS-80A Images
